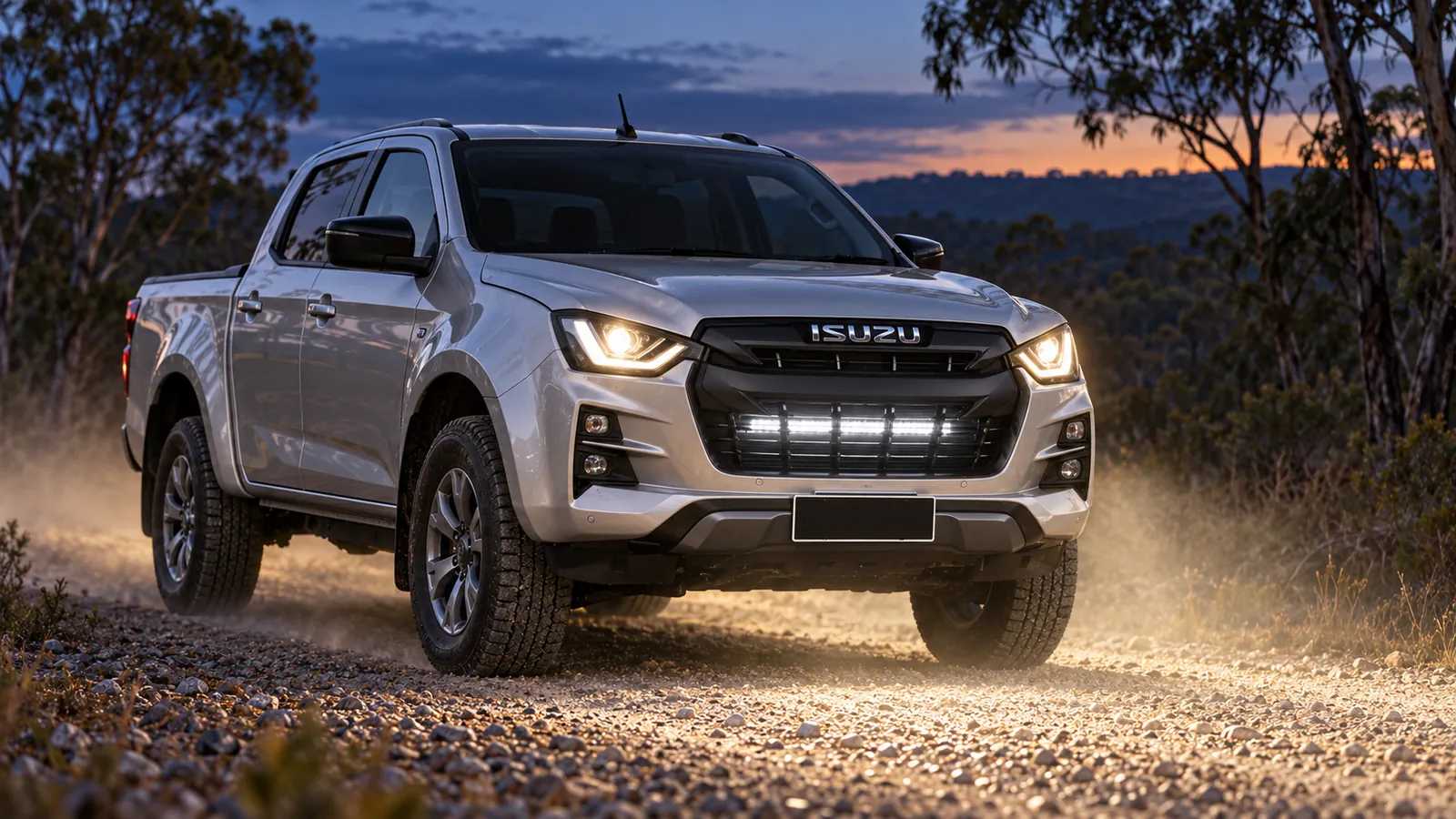

Isuzu D-Max RG 2021-on Behind Grille Light Bar Kit

Key features

• Designed specifically for the Isuzu D-Max RG 2021-on models
• No cutting or drilling required
• No bull bar required

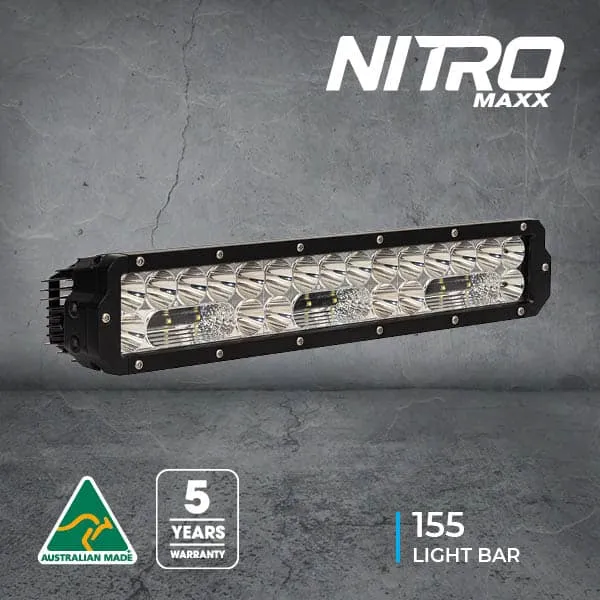

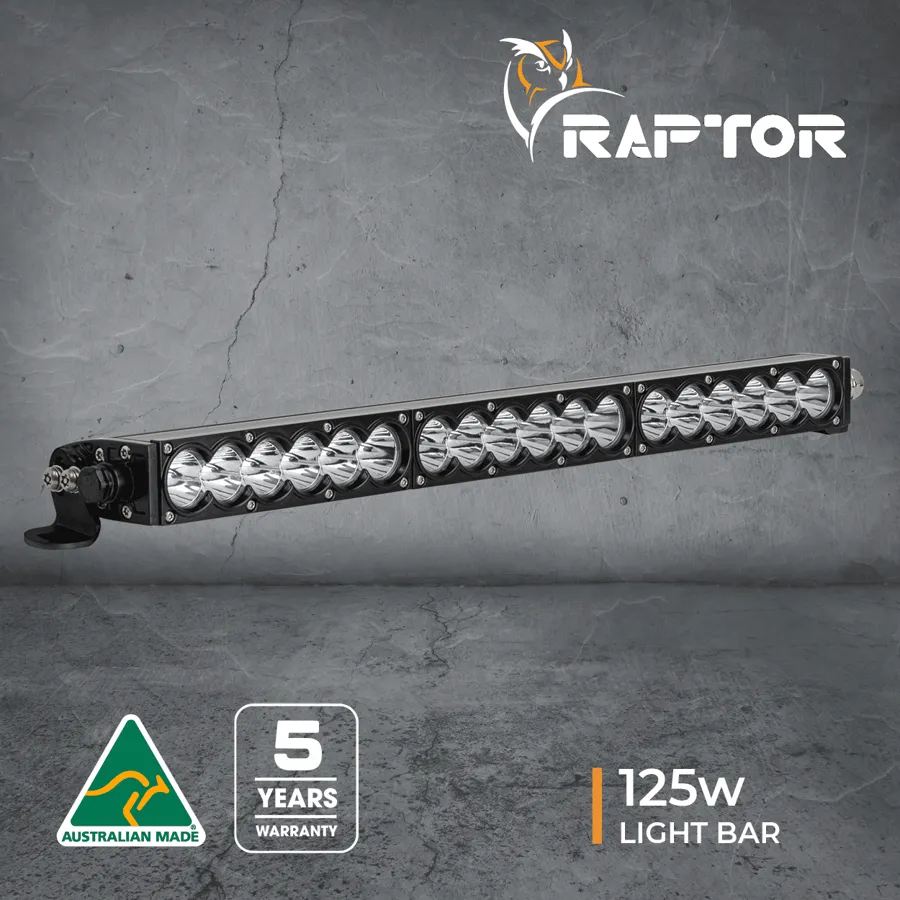

• Choose from Raptor or Nitro Maxx Light Bar options
• Brackets powder-coated black for sleek design and rust preservation
• Designed and made in Australia

In the kit

• 1x Nitro Maxx or Raptor Light Bar of your choice
• 1x Wiring harness to suit
• 1x Purpose-built D-Max Behind-Grille black powder-coated bracket kit
• 1x Isuzu D-Max high-beam piggyback wiring adaptor
• 1x OEM-Style switch to fit into factory switch blank
• 1x Mounting hardware kit (nuts, bolts, and brackets)
• Fitting and wiring instructions

Specifications

Wattage

125 Watts

Effective light output

11,430 Lumens

Raw light output

13,957 Lumens

Light source

18 High Power LEDs

Beams

Spot

Colour temperature

5700K

Waterproof rating

IP67

Voltage

9-36V

Current draw

10A

Dimensions

523 x 45 x 73mm

Net weight

1.7 kg

Housing

Aluminium

Lens

Polycarbonate

Bracket

Side Mount Brackets

Connector

2 Pin heavy duty Deutsch

Operating temperature

-40 to 80 Deg C

Lifespan

50,000 Hours

Warranty

5 Years
