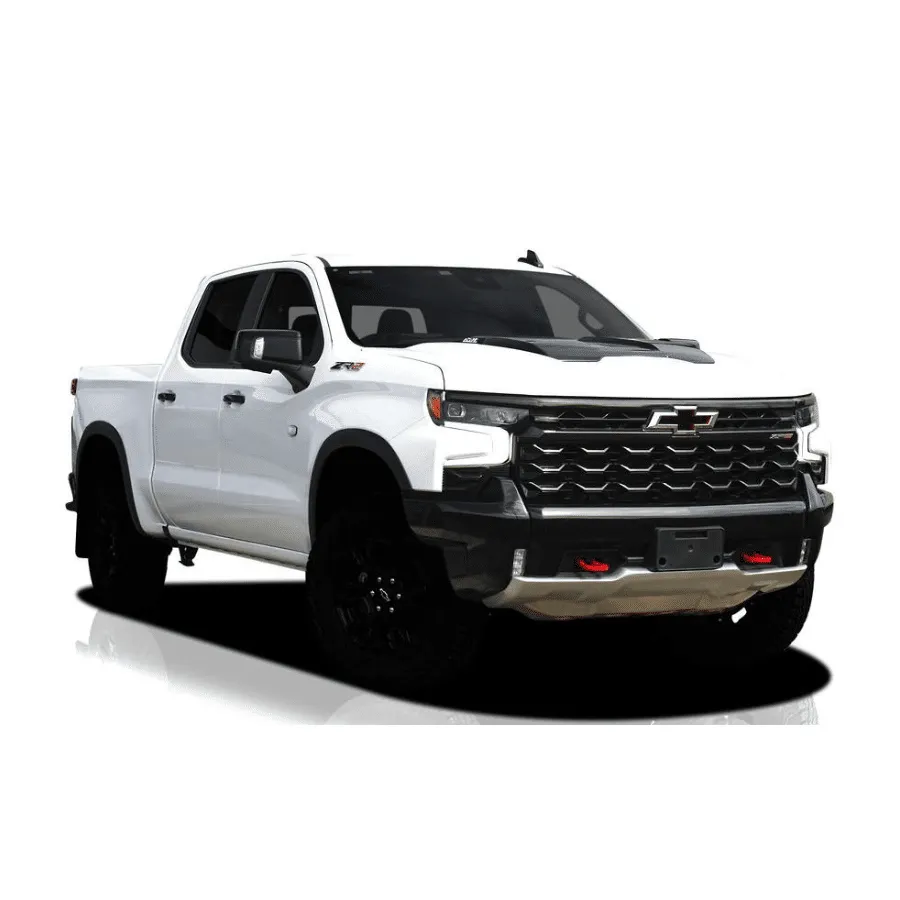

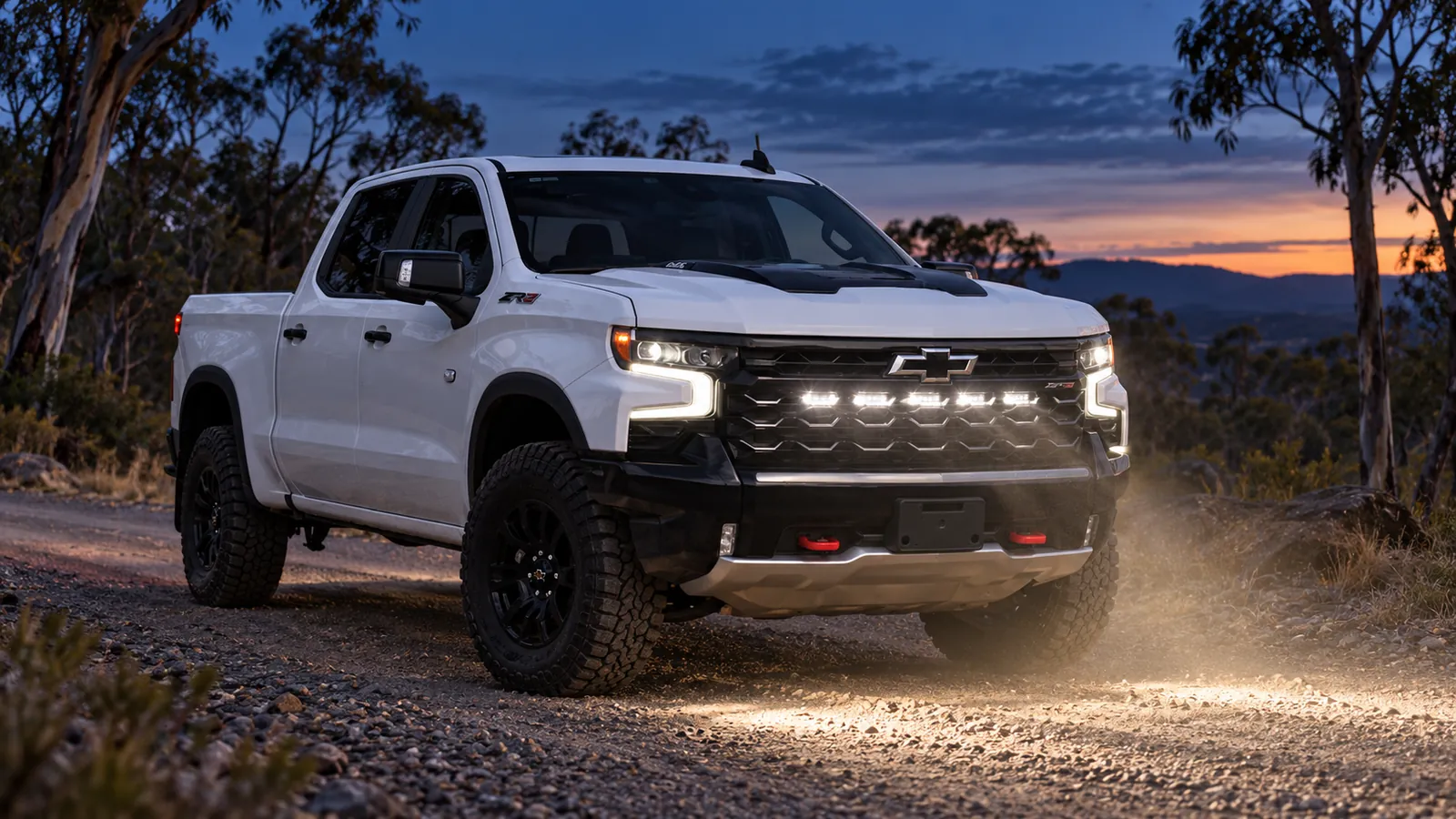

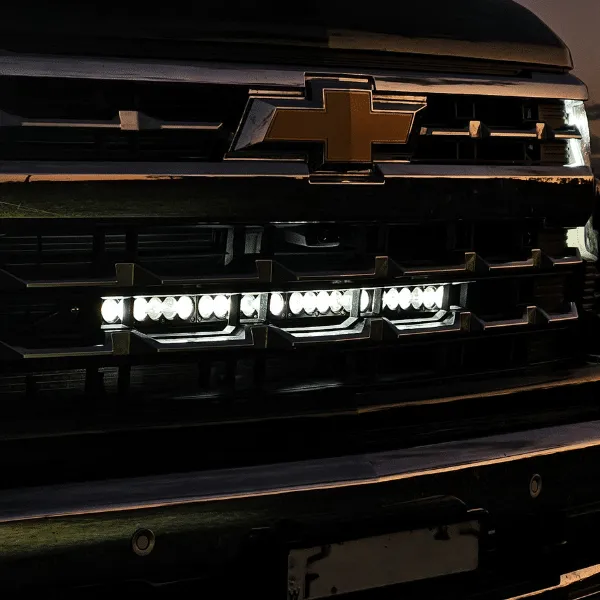

Chevrolet Silverado 1500 (ZR2 & Z71 - 2022 on, 4th Gen) Behind The Grille Light Bar Kit

Key features

• Custom fit for Chevrolet Silverado 1500
• No bull bar required
• No cutting or drilling required

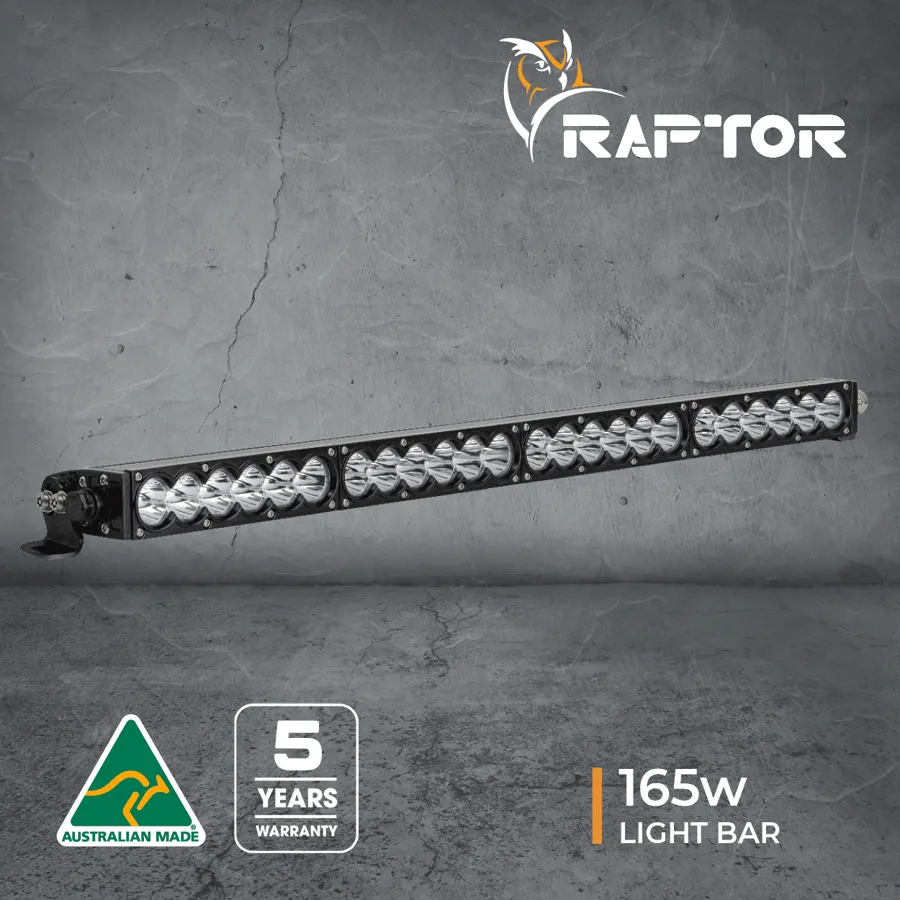

• Includes choice of Raptor or Nitro Maxx light bars

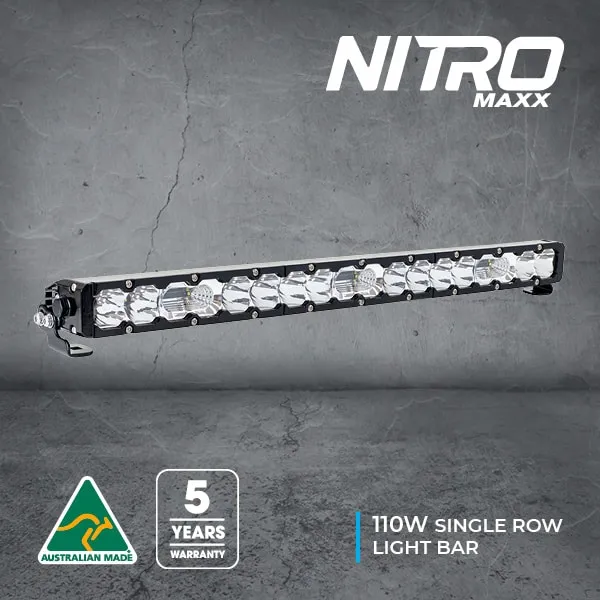

• Nitro Maxx Light Bars include the Widr® Optic - This unique reflector delivers market leading output, achieving huge distance with excellent spread
• 5-year warranty

In the kit

• Choice of Nitro Maxx or Raptor Light Bars (5700K)
• 1x Wiring harness to suit
• 1x Purpose-built behind-grille black powder-coated bracket kit
• 1x High-beam wiring harness adaptor
• 1x Mounting hardware kit (nuts, bolts, and brackets)
• Fitting and wiring instructions

Specifications

Wattage

165 Watts 110 Watts

Effective light output

15,240 Lumens 10344 Lumens

Raw light output

18,609 Lumens 13699 Lumens

Light source

24 High Power LEDs 18 x Osram LEDs

Beams

Spot Combo

Colour temperature

5700K 5700K

Waterproof rating

IP67 IP68

Voltage

9-36V 9v-36vDC

Current draw

13A @ 13.5V 8A

Dimensions

679 x 45 x 73mm 680mm / 27″

Net weight

2.3kg 2.3kg

Housing

Aluminium 6063 T5 Aluminium

Lens

Polycarbonate Polycarbonate

Bracket

Stainless Steel powdered-coated black Stainless Steel powdered-coated black

Mounting

Side mount brackets Side Mounts

Connector

2 Pin Heavy Duty Deutsch 2 Pin std Deutsch

Operating temperature

-40 to 80 Deg C -40 to 80 Deg C

Lifespan

50,000 Hours 50,000 Hours

Warranty

5 Years
