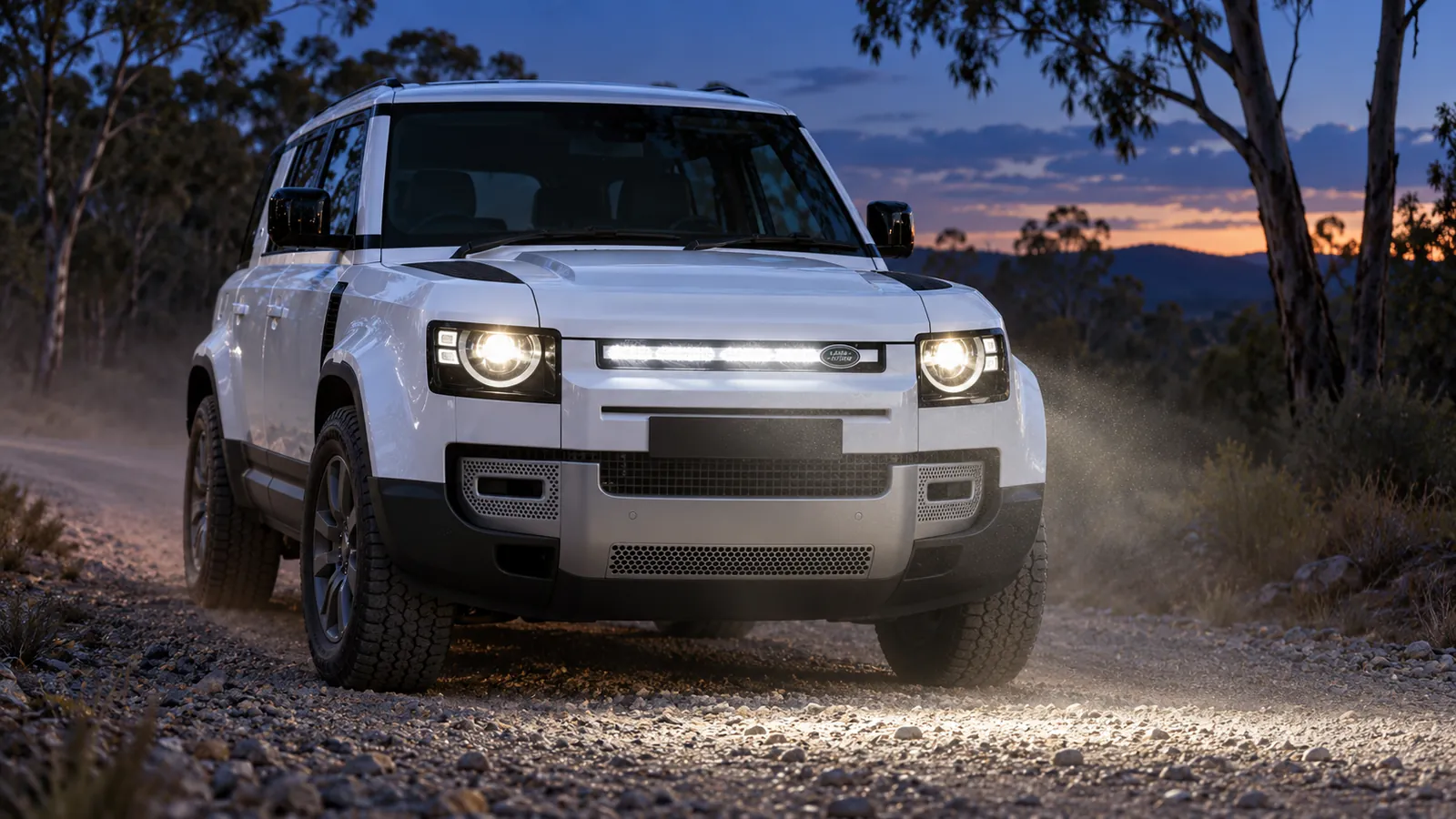

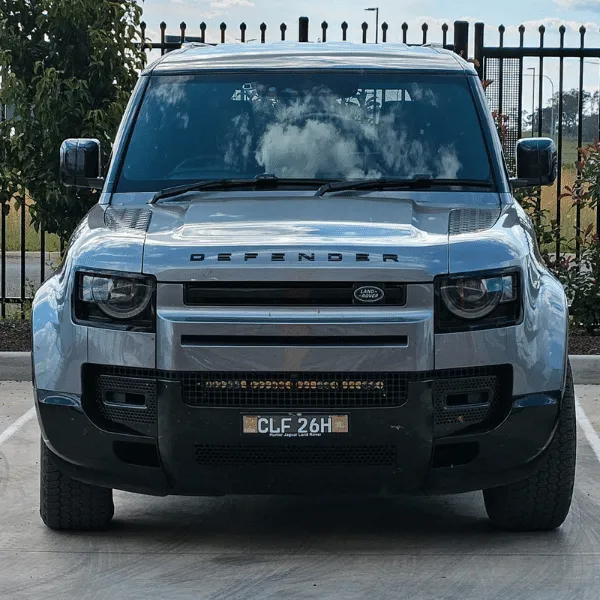

Land Rover Defender L663 (2019-on) Behind Grille Light Bar Kit

Key features

• Custom fit for Land Rover Defender L663 Models
• No bull bar required
• No cutting or drilling required

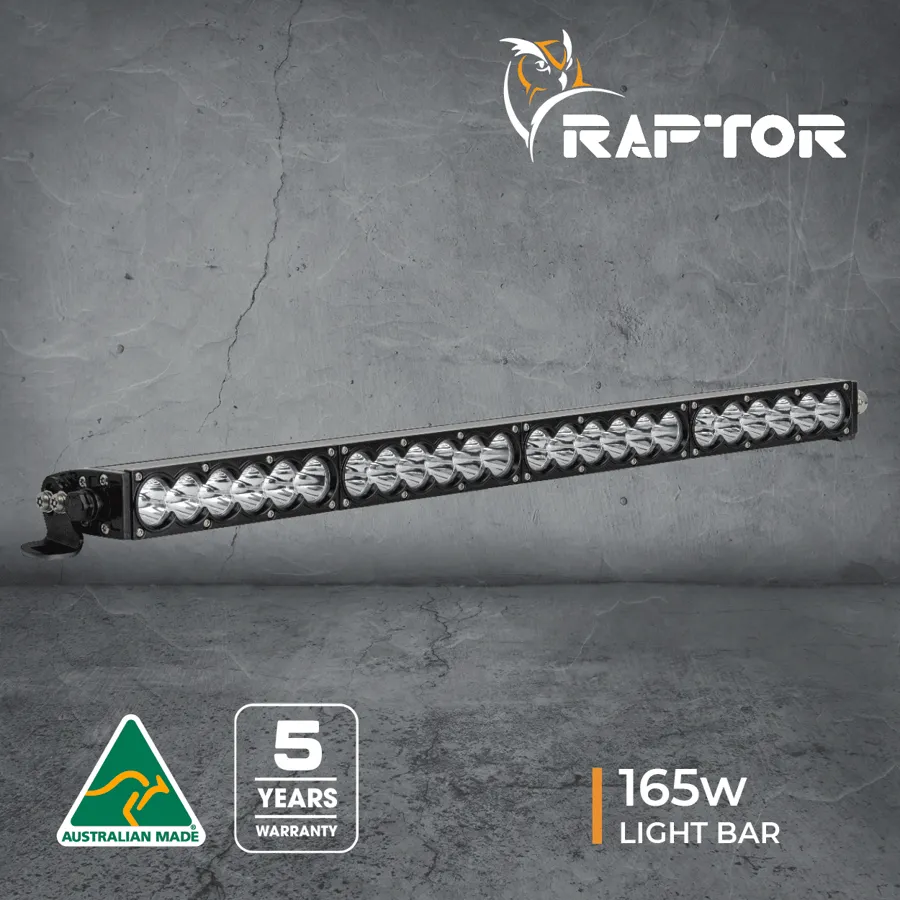

• Includes Raptor 165w light bar
• Nitro Maxx Light Bars include the Widr® Optic - This unique reflector delivers market leading output, achieving huge distance with excellent spread
• 5-year warranty

In the kit

• 1x Raptor 165w Light Bar (5700K)
• 1x Wiring harness to suit
• 1x Purpose-built behind-grille black powder-coated bracket kit
• 1x High-beam wiring harness adaptor
• 1x Mounting hardware kit (nuts, bolts, and brackets)
• Fitting and wiring instructions

Specifications

Wattage

165 Watts

Effective light output

15,240 Lumens

Raw light output

18,609 Lumens

Light source

24 High Power LEDs

Beams

Spot

Colour temperature

5700K

Waterproof rating

IP67

Voltage

9-36V

Current draw

13A @ 13.5V

Dimensions

679 x 45 x 73mm

Net weight

2.3kg

Housing

Aluminium

Lens

Polycarbonate

Bracket

Stainless Steel powdered-coated black

Mounting

Side mount brackets

Connector

2 Pin Heavy Duty Deutsch

Operating temperature

-40 to 80 Deg C

Lifespan

50,000 Hours

Warranty

5 Years
