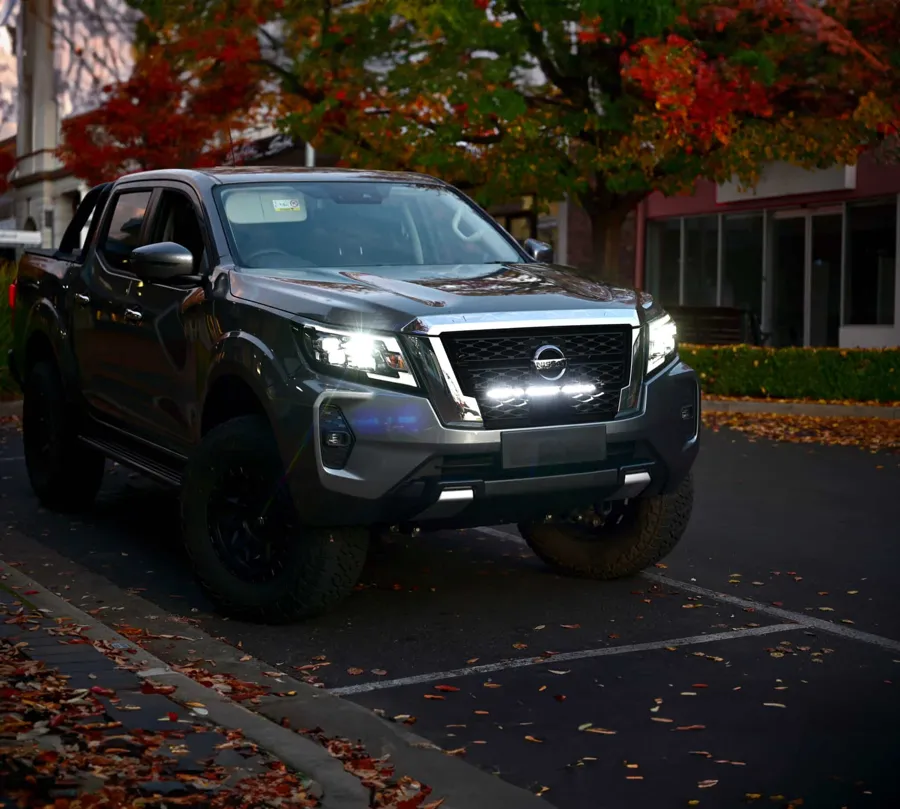

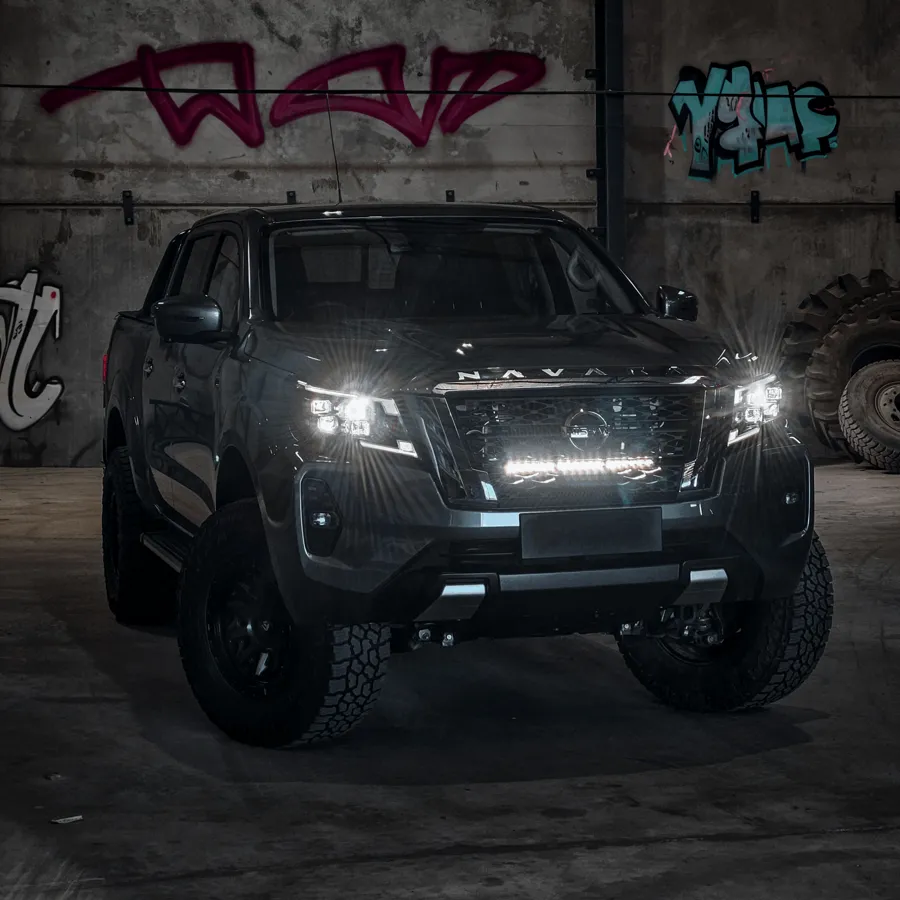

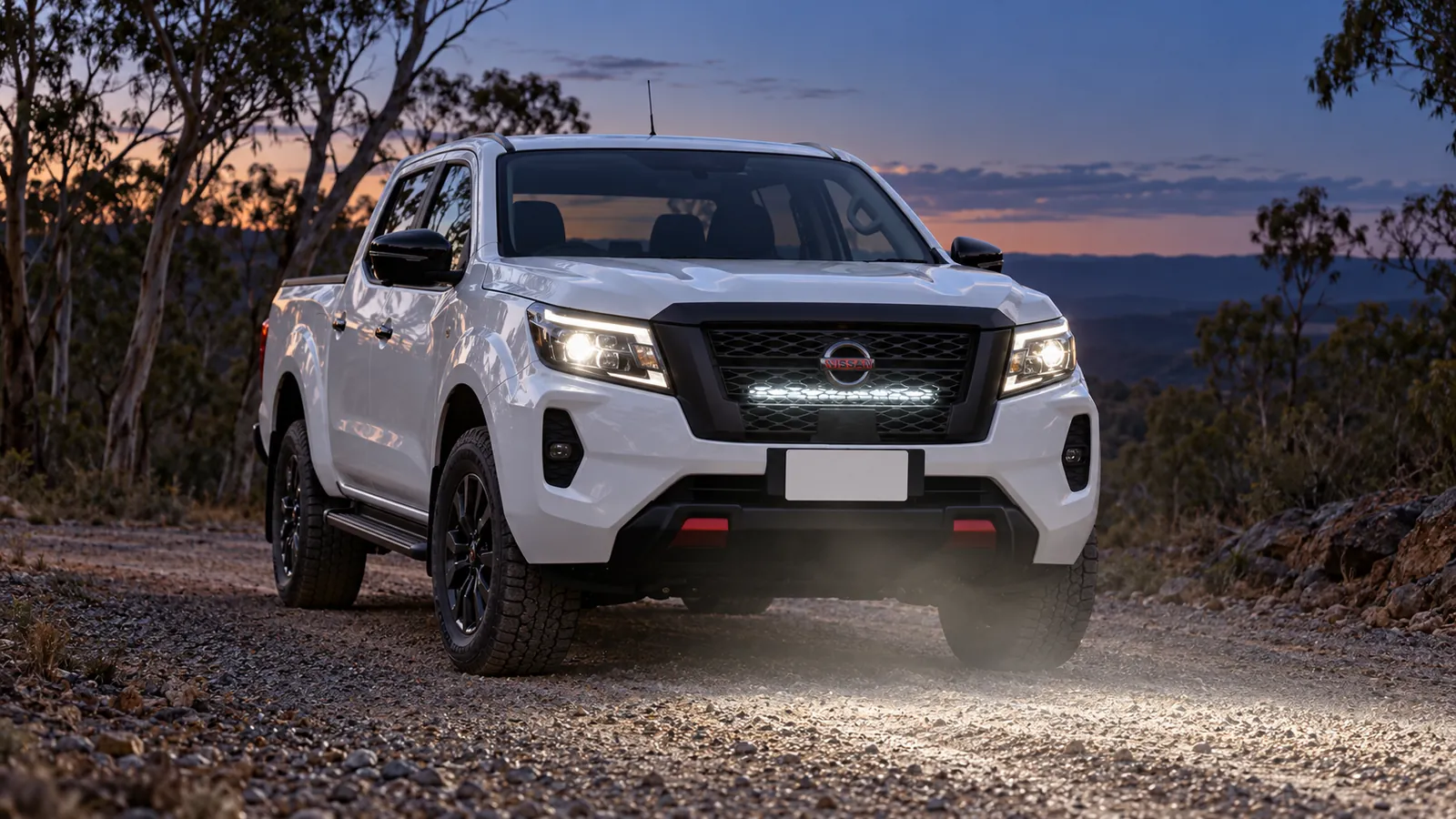

Nissan Navara Series 5 NP300 D23 2021-on Behind Grille Light Bar Kit

Key features

• Designed specifically for the Nissan Navara Series 5 NP300 D23 2021-on models
• No bull bar required
• No cutting or drilling required
• Includes 1x Raptor 125w LED light bar with 708m beam distance at 1 lux
• Brackets powder-coated black for sleek design and rust preservation
• 5-year warranty

In the kit

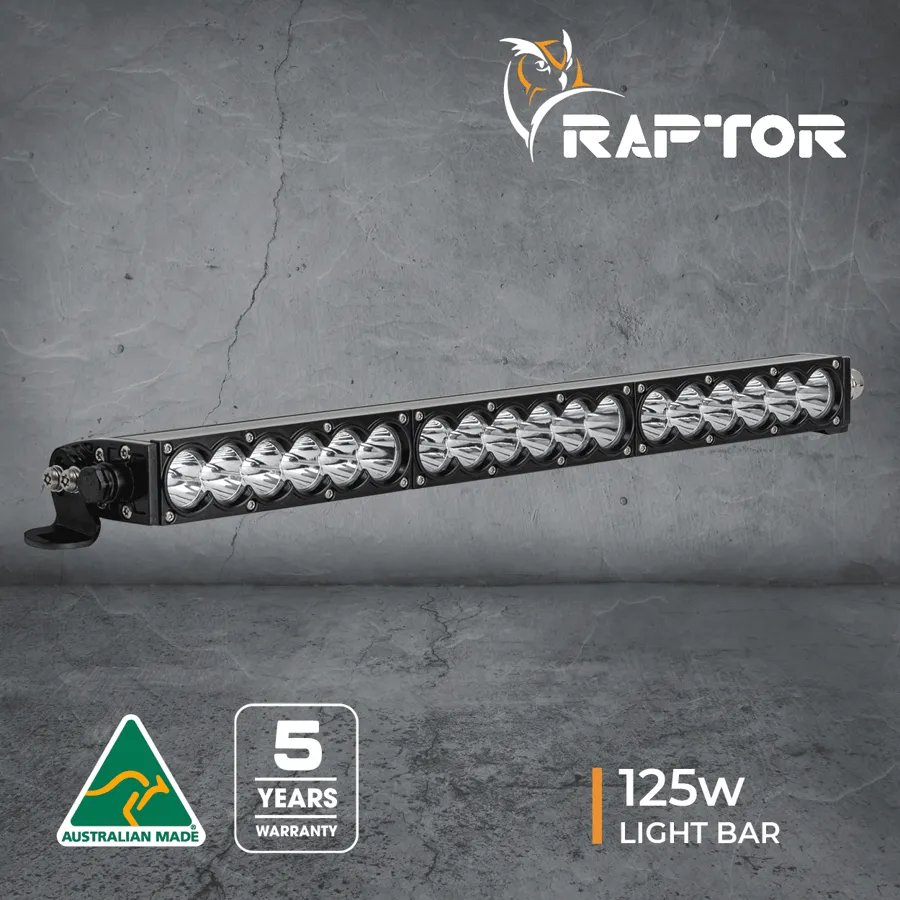

• 1x Raptor 125w 20.5-Inch LED Light Bar in 5700K
• 1x Wiring harness to suit
• 1x Purpose-built Navara NP300 D23 Behind-Grille black powder-coated bracket kit
• 1x Navara D23 high-beam plug & play wiring adaptor
• 1x OEM-Style switch to fit into factory switch blank
• 1x Mounting hardware kit (nuts, bolts, and brackets)
• Fitting and wiring instructions

Specifications

Wattage

125 Watts

Effective light output

11,430 Lumens

Raw light output

13,957 Lumens

Light source

18 High Power LEDs

Beams

Spot Beam

Colour temperature

5700K

Waterproof rating

IP67

Voltage

9-36V

Current draw

10A @ 13.5V

Dimensions

523 x 45 x 73mm

Net weight

1.7kg

Housing

Aluminium

Lens

Polycarbonate

Bracket

Stainless Steel powder coated black

Mounting

Side Mount Brackets

Connector

2 Pin Heavy Duty Deutsch

Operating temperature

-40 to 80 Deg C

Lifespan

50,000 Hours

Warranty

5 Years
