Ultra Vision · Behind-grille kit
Toyota 200 Series Land Cruiser In-Grille Light Bar Integration Kit

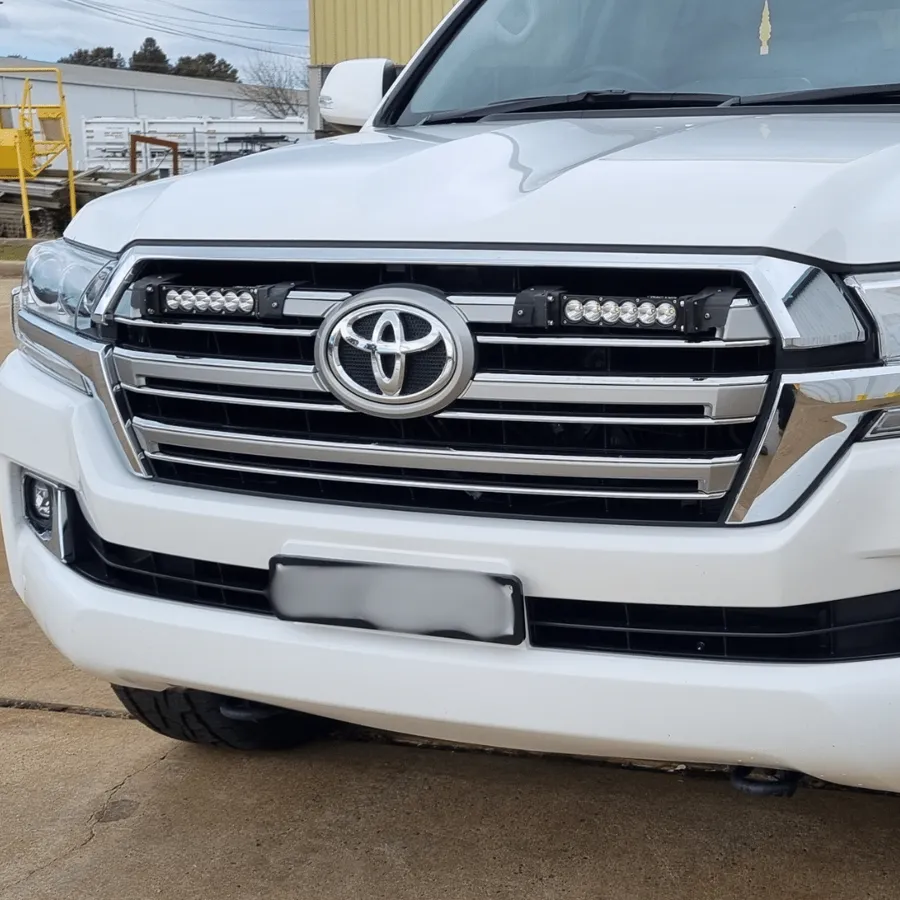

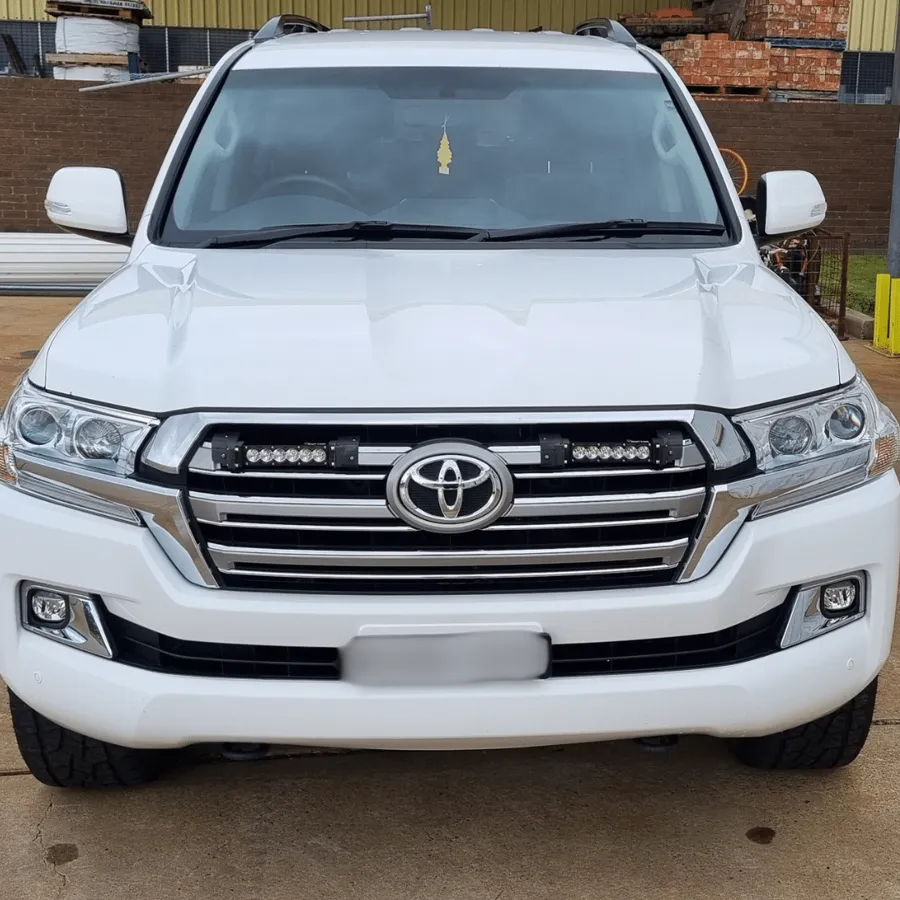

A behind-grille light bar kit for the Toyota 200 Series LandCruiser. It mounts to factory points behind the grille, so there's no bull bar, cutting or drilling. We supply, fit and wire it to your high beam in Caboolture.
- Power
- 40W
- Light output
- 3,810 lm
- Waterproof
- IP67
- 5-year warranty
- Australian designed and made
- Fitted and wired in Caboolture
Key features
- Designed specifically for the Toyota 200 Series Land Cruiser
- No bull bar required

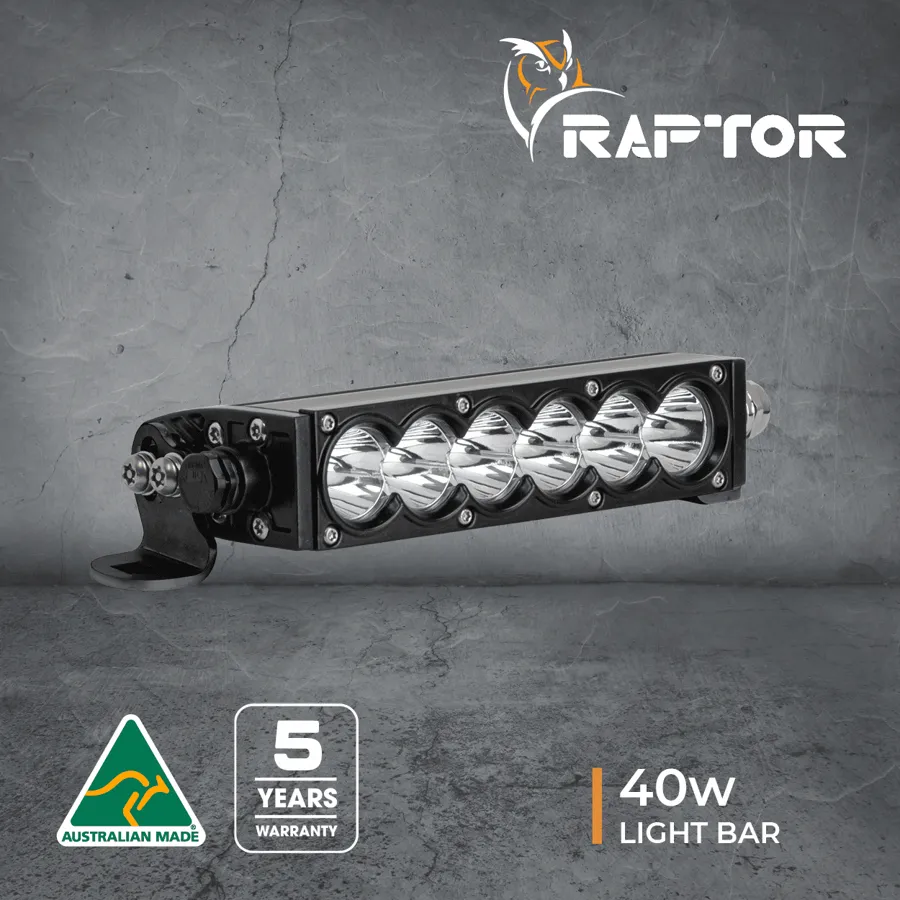

- Includes 2 x Raptor 40w 8.5-Inch LED Light Bars with 578m beam distance at 1 Lux
- Includes purpose-built Toyota 200 Series Land Cruiser black bracketry
- 5-Year warranty
- Designed and made in Australia
Specifications
- Wattage
- 40 Watts
- Effective light output
- 3,810 Lumens
- Raw light output
- 4,652 Lumens
- Light source
- 6 High Power LEDs
- Beams
- Spread or Combo
- Colour temperature
- 5700K
- Waterproof rating
- IP67
- Voltage
- 9-36V
- Current draw
- 3.25A @ 13.5
- Dimensions
- 213 x 45 x 73mm
- Net weight
- 640g
- Housing
- Aluminium
- Lens
- Polycarbonate
- Bracket
- Stainless Steel powdered-coated black
- Mounting
- Side Mount
- Connector
- 2 Pin Heavy Duty Deutsch
- Operating temperature
- -40 to 80 Deg C
- Lifespan
- 50,000 Hours
- Warranty
- 5 Years
