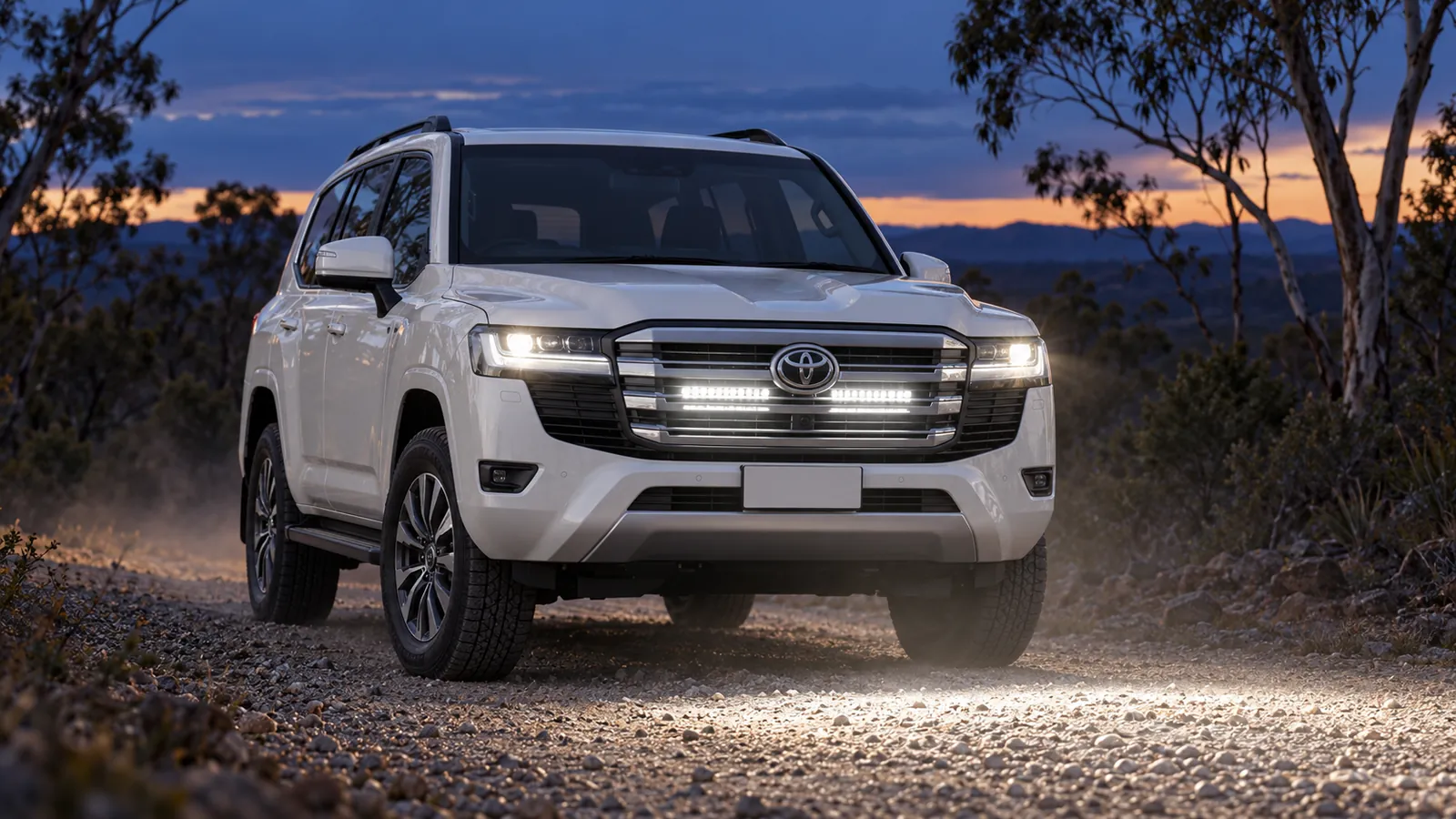

Toyota 300 Series Land Cruiser Behind Grille Light Bar Kit

Key features

• Designed specifically for the Toyota 300 Series Land Cruiser
• No bull bar required
• No cutting or drilling required

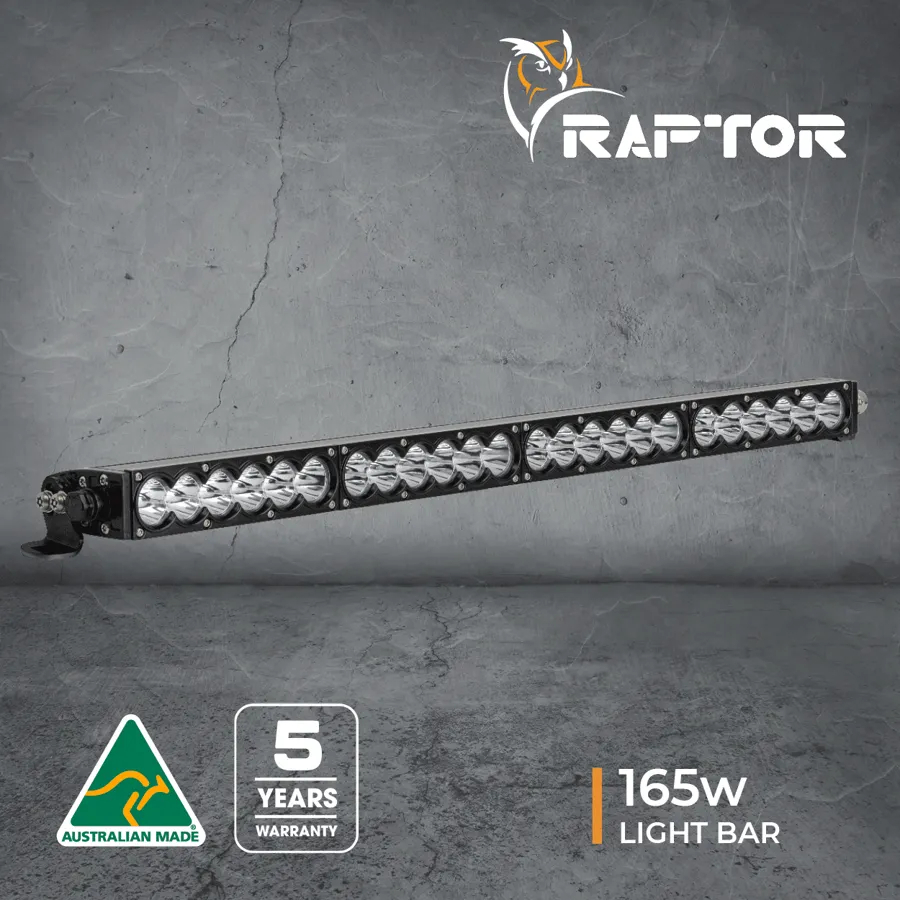

• Includes 1 x Raptor 165w 26.5-Inch LED Light Bar with 817m beam distance at 1 Lux
• Brackets powder-coated black for sleek design and rust preservation
• Designed and made in Australia

In the kit

• 1 x Raptor 165w 26.5-Inch LED Light Bar in 5700K
• 1x Wiring harness to suit
• 1x Purpose-built 300 Series LC behind-grille black powder-coated bracket kit
• 1x Can Bus high beam module
• 1x OEM-Style switch to fit into factory switch blank
• 1x Mounting hardware kit (nuts, bolts and brackets)
• Fitting and wiring instructions

Specifications

Wattage

165 Watts

Effective light output

15,240 Lumens

Raw light output

18,609 Lumens

Light source

24 High Power LEDs

Beams

Spot

Colour temperature

5700K

Waterproof rating

IP67

Voltage

9-36V

Current draw

13A @ 13.5V

Dimensions

679 x 45 x 73mm

Net weight

2.3kg

Housing

Aluminium

Lens

Polycarbonate

Bracket

Stainless Steel powdered-coated black

Mounting

Side mount brackets

Connector

2 Pin Heavy Duty Deutsch

Operating temperature

-40 to 80 Deg C

Lifespan

50,000 Hours

Warranty

5 Years
