Ultra Vision · Behind-grille kit
Toyota RAV4 (2019-on) Behind Grille Light Bar Kit
A behind-grille light bar kit for the Toyota RAV4 (2019-on). It mounts to factory points behind the grille, so there's no bull bar, cutting or drilling. We supply, fit and wire it to your high beam in Caboolture.
- Power
- 80W
- Light output
- 10,620 lm
- Waterproof
- IP68
- 5-year warranty
- Australian designed and made
- Fitted and wired in Caboolture
Key features
- Custom fit for Toyota RAV4 2019 - on Model
- No bull bar required
- No cutting or drilling required

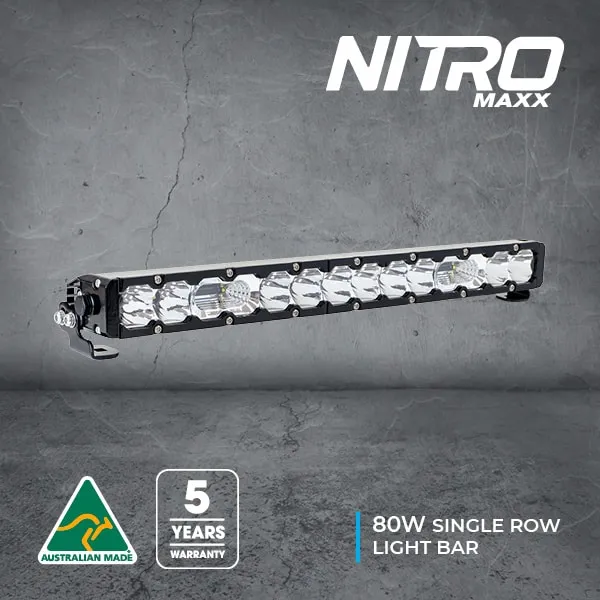

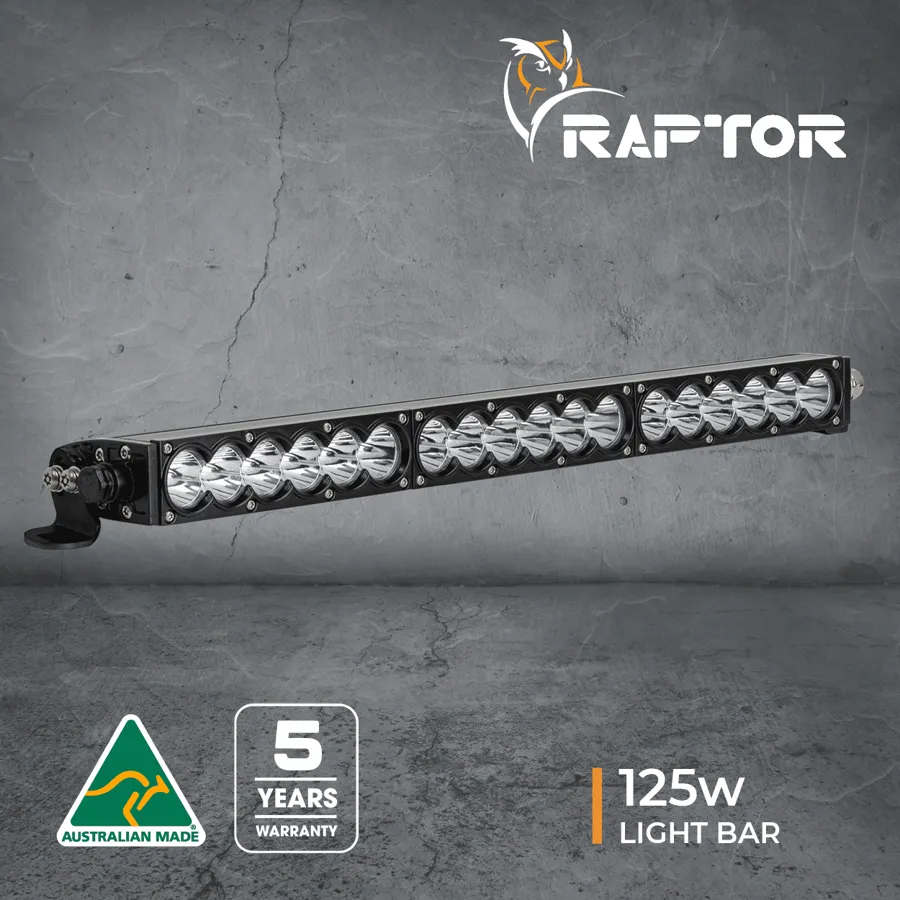

- Choice of Nitro Maxx or Raptor Light Bar
- Solid fitment that doesn’t vibrate on rough roads
- Powder-coated black, stainless steel brackets for sleek design and rust preservation
In the kit
- Choice of Nitro Maxx or Raptor Light Bars (5700K)
- 1x Wiring harness to suit
- 1x Purpose-built behind-grille black powder-coated bracket kit
- 1x High-beam wiring harness adaptor
- 1x Mounting hardware kit (nuts, bolts, and brackets)
- Fitting and wiring instructions
Specifications
- Wattage
- 80 Watts
- Raw light output
- 10620 Lumens
- Light output
- 8019 Lumens
- Light source
- 14 x Osram LEDs
- Beams
- Combo
- Colour temperature
- 4500K or 5700K
- Waterproof rating
- IP68
- Voltage
- 9v-36vDC
- Current draw
- 6A
- Dimensions
- 535mm / 21"
- Net weight
- 1.8kg
- Housing
- 6063 T5 Aluminium
- Lens
- Polycarbonate
- Bracket
- Stainless Steel
- Mounting
- Side Mounts
- Connector
- 2 Pin std Deutsch
- Wiring harness
- Yes, DV12H
- Operating temperature
- -40 to 80 Deg C
- Lifespan
- 50,000 Hours
- Warranty
- 5 Years
Part numbers
- 4500K
- NM80SCLB4
- 5700K
- NM80SCLB
