Ultra Vision · Behind-grille kit

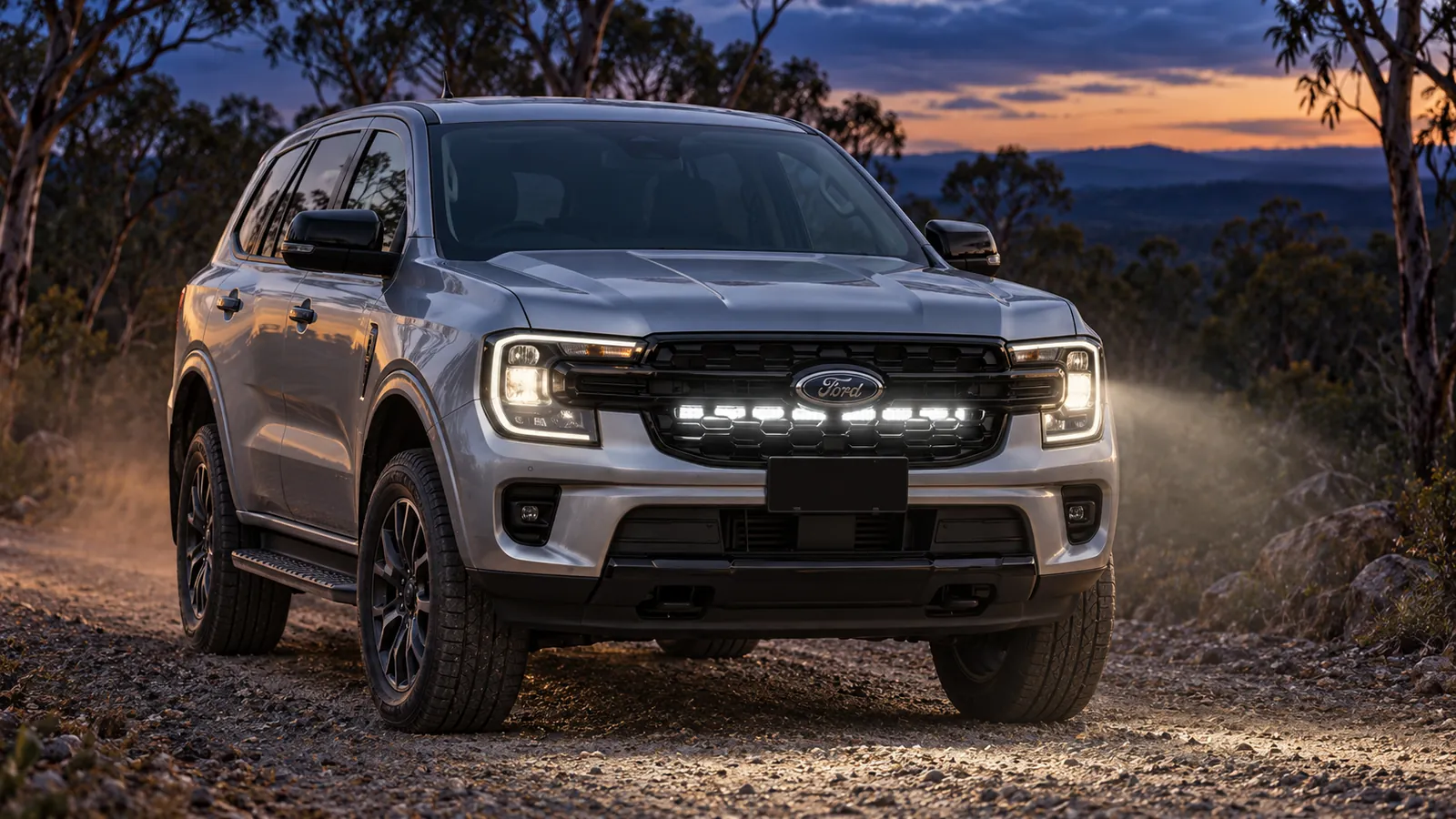

Ford Next-Gen Everest Light Bar Behind Grille Kit

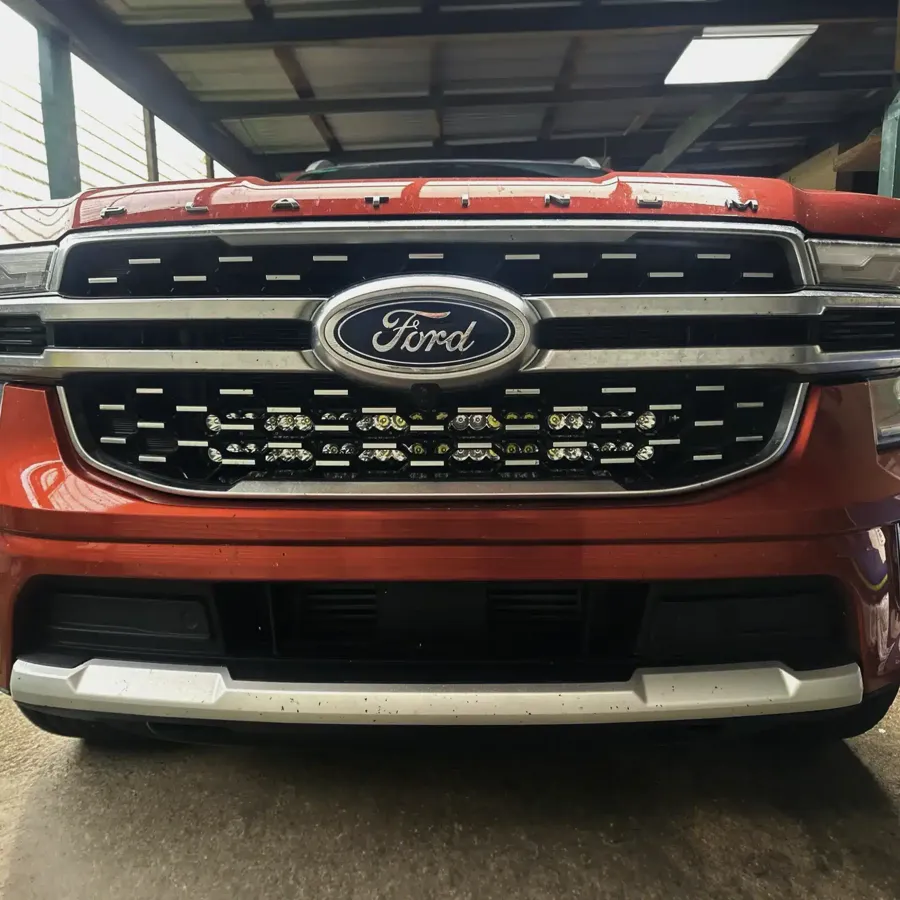

A behind-grille light bar kit for the Ford Next-Gen Everest. It mounts to factory points behind the grille, so there's no bull bar, cutting or drilling. We supply, fit and wire it to your high beam in Caboolture.
- Power
- 165W
- Light output
- 15,240 lm
- Waterproof
- IP67
- 5-year warranty
- Australian designed and made
- Fitted and wired in Caboolture
Key features

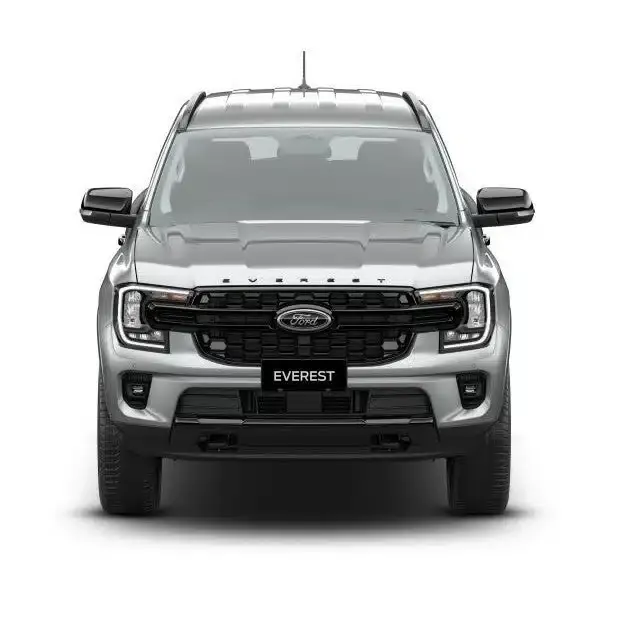

- Custom fit for Next-Gen Ford Everest 2022-on (V6 only) models
- No bull bar required
- No cutting or drilling required

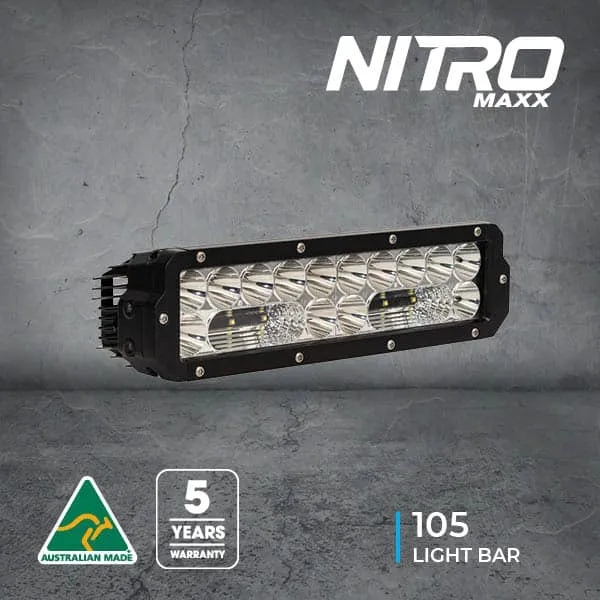

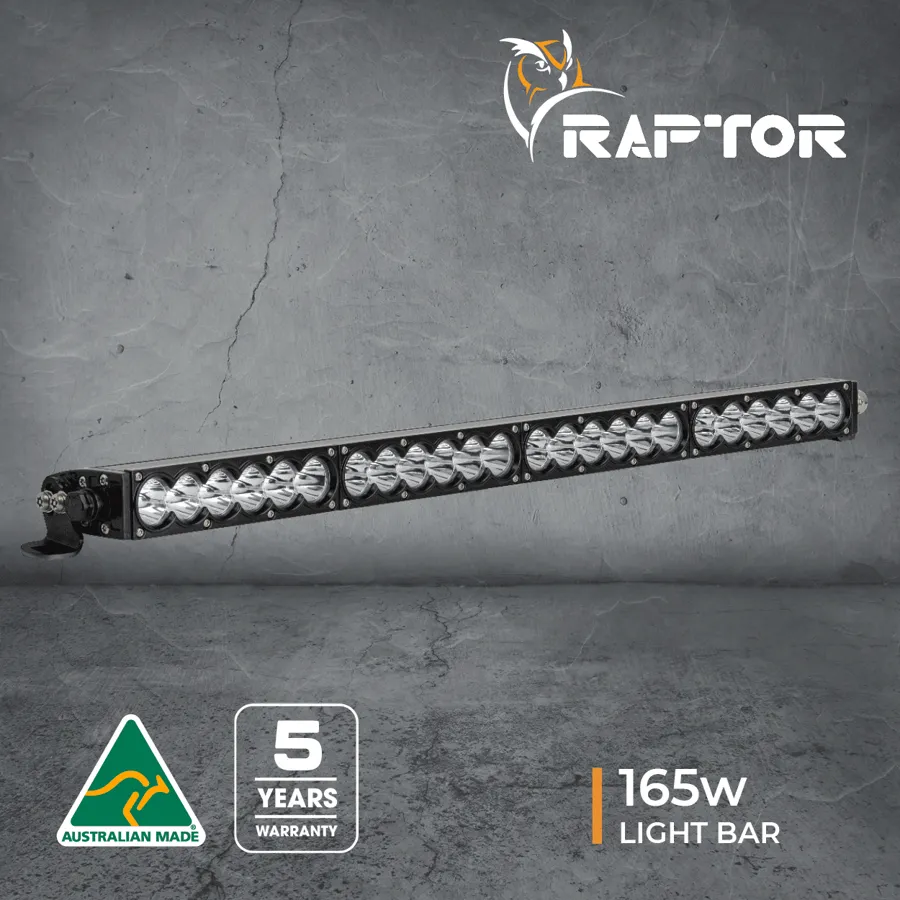

- Includes choice of Raptor or Nitro Maxx Light Bars
- Nitro Maxx Light Bars include the Widr® Optic - This unique reflector delivers market leading output, achieving huge distance with excellent spread
- Solid fitment that doesn’t vibrate on rough roads
In the kit
- Choice of Nitro Maxx or Raptor Light Bars
- 1 x Wiring harness to suit
- 1x Purpose-built Next-Gen Everest behind-grille black powder-coated bracket kit
- 1x High-beam wiring harness adaptor
- 1x Mounting hardware kit (nuts, bolts, and brackets)
- Fitting and wiring instructions
Specifications
- Wattage
- 165 Watts
- Effective light output
- 15,240 Lumens
- Raw light output
- 18,609 Lumens
- Light source
- 24 High Power LEDs
- Beams
- Spot
- Colour temperature
- 5700K
- Waterproof rating
- IP67
- Voltage
- 9-36V
- Current draw
- 13A
- Dimensions
- 679 x 45 x 73mm
- Net weight
- 2.3 kg
- Housing
- Aluminium
- Lens
- Polycarbonate
- Bracket
- Side Mount Brackets
- Connector
- 2 Pin heavy duty Deutsch
- Operating temperature
- -40 to 80 Deg C
- Lifespan
- 50,000 Hours
- Warranty
- 5 Years
