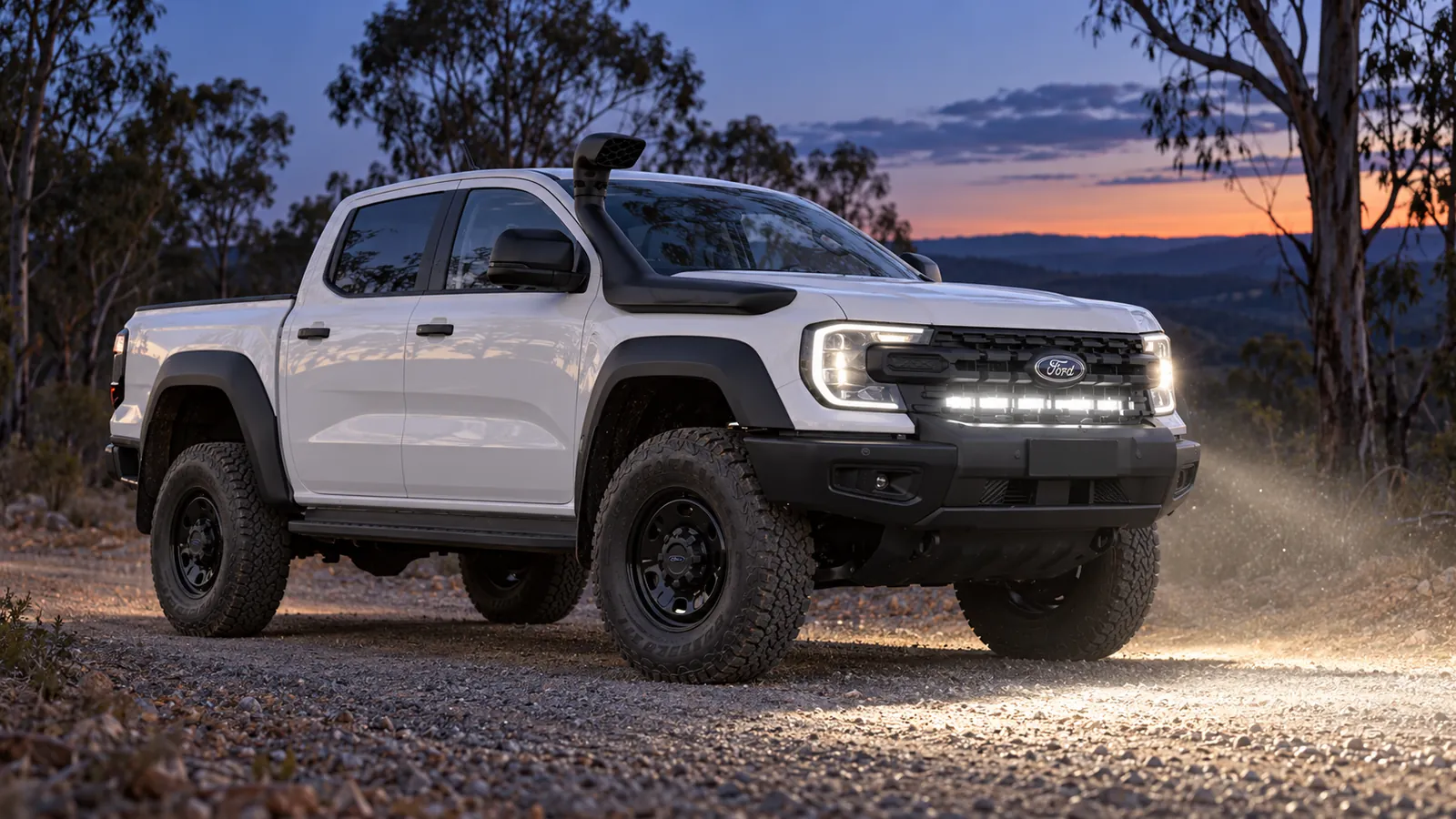

Ford Next-Gen Ranger Super Duty Behind Grille Kit
A behind-grille light bar kit for the Ford Next-Gen Ranger Super Duty. It mounts to factory points behind the grille, so there's no bull bar, cutting or drilling. We supply, fit and wire it to your high beam in Caboolture.
- Power
- 100W
- Light output
- 8,865 lm
- Waterproof
- IP68
- 5-year warranty
- Australian designed and made
- Fitted and wired in Caboolture
Key features
- Custom fit for Ford Ranger Super Duty
- No bull bar required
- No cutting or drilling required
- Includes choice of Raptor or Nitro Maxx light bars
- Solid fitment that doesn’t vibrate on rough roads
- 5-year Warranty
In the kit

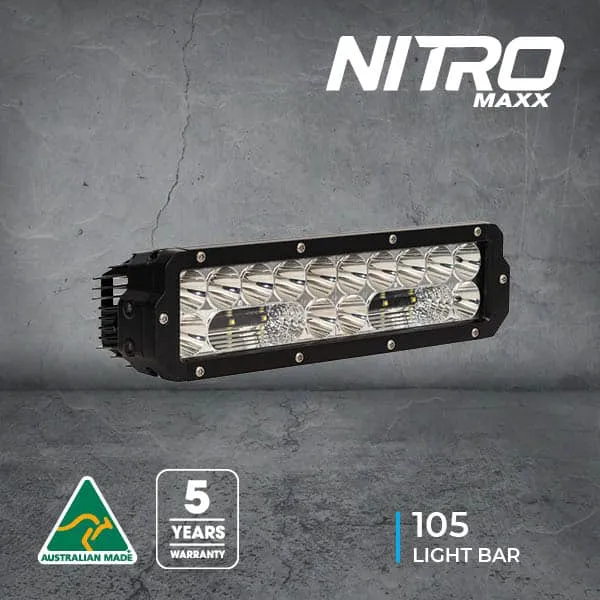

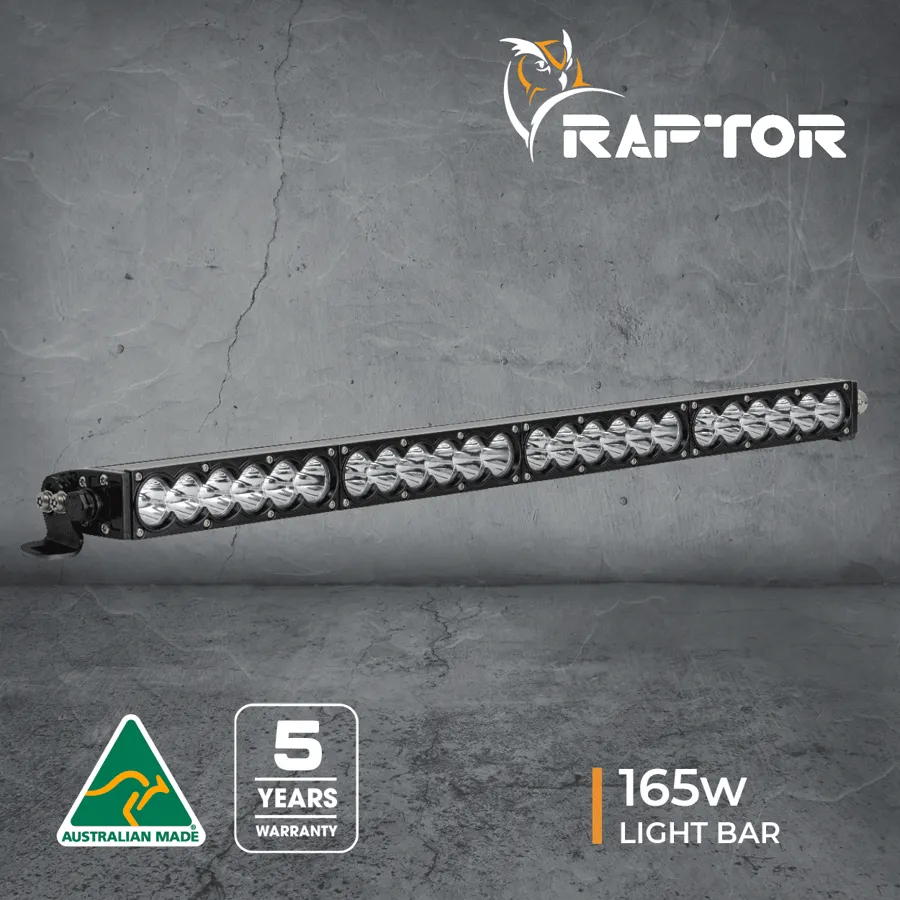

- A choice of Nitro Maxx or Raptor Light Bars
- 1 x Purpose-built Ford Ranger Super Duty light bar bracket kit
- 1 x Wiring Harness to suit
- 1 x High-beam plug & play wiring adaptor
- Mounting hardware (bolts, nuts and brackets)
- Fitting and wiring instructions
Specifications
- Wattage
- 100 Watts
- Effective light output
- 8,865 Lumens
- Raw light output
- 12,320 Lumens
- Light source
- 20 x 5w LED's
- Beams
- Combo and Widr
- Colour temperature
- 5700K
- Waterproof rating
- IP68
- Voltage
- 9-36V
- Current draw
- 8A
- Dimensions
- 324 x 92 x 84mm
- Net weight
- 1.9 kg
- Housing
- 6063 T5 Aluminium
- Lens
- Polycarbonate
- Bracket
- Sliding Base / Side Mounts
- Connector
- 2 Pin std Deutsch
- Operating temperature
- -40 to 80 Deg C
- Lifespan
- 50,000 Hours
- Warranty
- 5 Years
Fitted at our Caboolture workshop
We fit and wire every light at 24 Commercial Dr, Caboolture, with the harness and switch to suit your vehicle. Customers come from within about 50 km, including:
- Caloundra
- Beerwah
- Woodford
- Bribie Island
- Caboolture
- Morayfield
- Burpengary
- Narangba
- Deception Bay
- North Lakes
- Redcliffe
- Strathpine
