Ultra Vision · Behind-grille kit

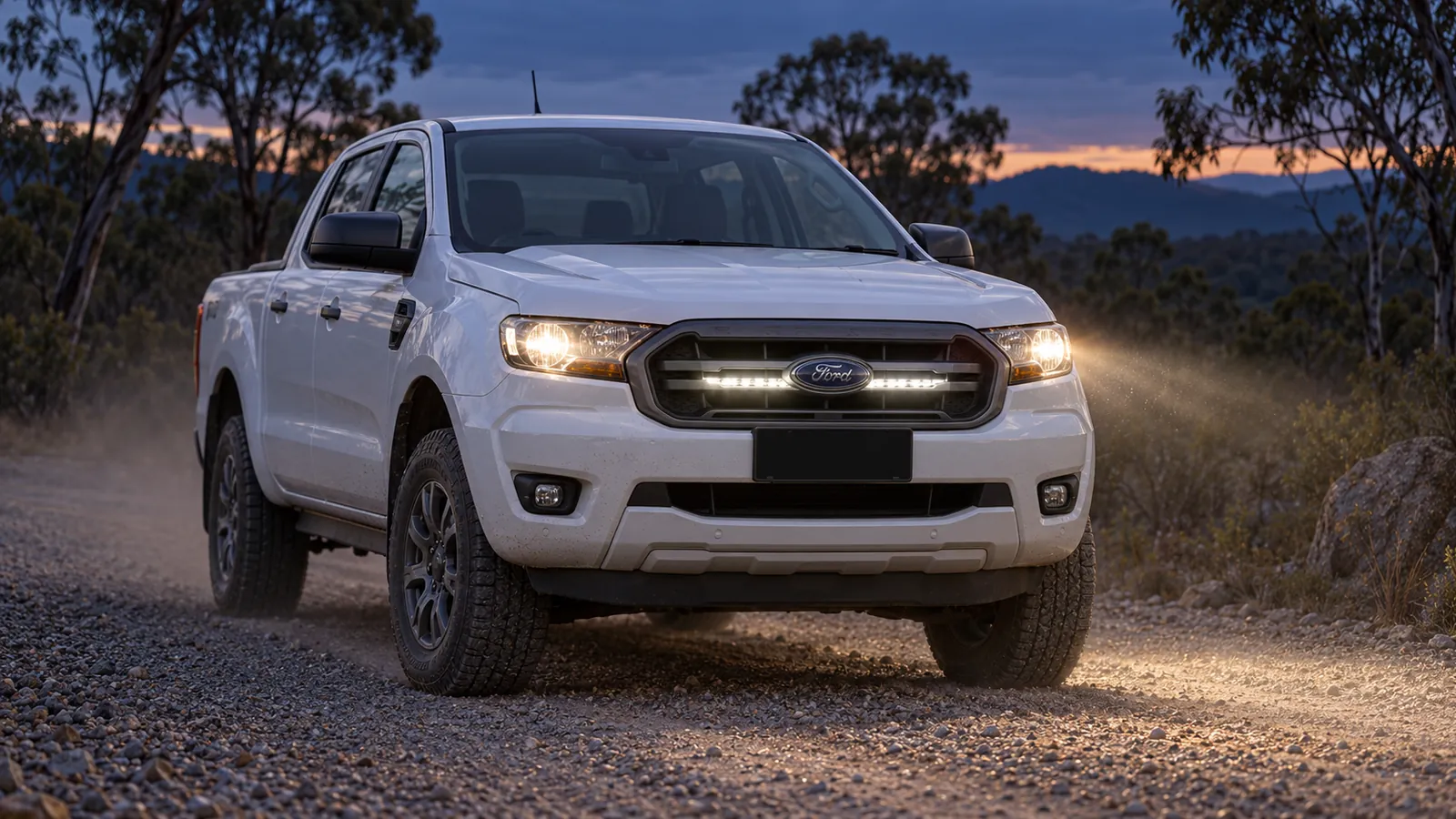

Ford Ranger PX3 Light Bar Grille Integration Kit
A behind-grille light bar kit for the Ford Ranger PX3. It mounts to factory points behind the grille, so there's no bull bar, cutting or drilling. We supply, fit and wire it to your high beam in Caboolture.
- Power
- 40W
- Light output
- 3,810 lm
- Waterproof
- IP67
- 5-year warranty
- Australian designed and made
- Fitted and wired in Caboolture
Key features
- Custom fit for Ford Ranger PX3 July 2018 - 2022 models
- No bull bar required

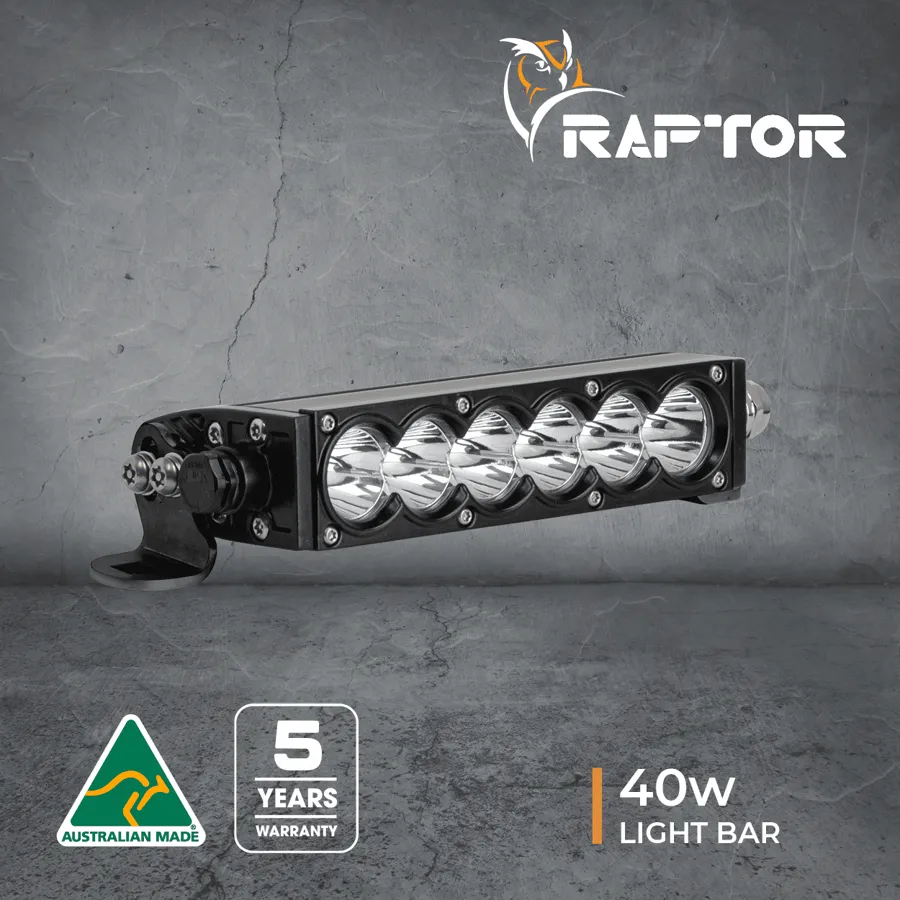

- Includes 2x Raptor 40w 8.5-Inch LED Light Bars with 578m beam distance at 1 lux
- 5-year warranty
- Black brackets made of strong nylon material
- Designed and made in Australia
In the kit
- 2 x Raptor 40w 8.5-inch led light bars in 5700k
- 1 x Purpose-built Ford Ranger PX3 light bar bracket kit
- 1 x Wiring Harness to suit
- 1 x Ranger PX3 high-beam plug & play wiring adaptor
- Mounting hardware (bolts, nuts and brackets)
- Fitting and wiring instructions
Specifications
- Wattage
- 40 Watts
- Effective light output
- 3,810 Lumens
- Raw light output
- 4,652 Lumens
- Light source
- 6 High Power LEDs
- Beams
- Spread or Combo
- Colour temperature
- 5700K
- Waterproof rating
- IP67
- Voltage
- 9-36V
- Current draw
- 3.25A @ 13.5
- Dimensions
- 213 x 45 x 73mm
- Net weight
- 640g
- Housing
- Aluminium
- Lens
- Polycarbonate
- Bracket
- Stainless Steel powdered-coated black
- Mounting
- Side Mount
- Connector
- 2 Pin Heavy Duty Deutsch
- Operating temperature
- -40 to 80 Deg C
- Lifespan
- 50,000 Hours
- Warranty
- 5 Years

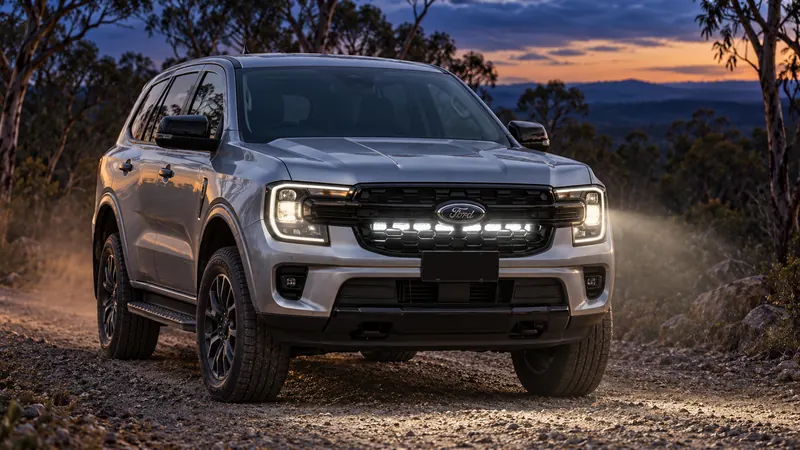

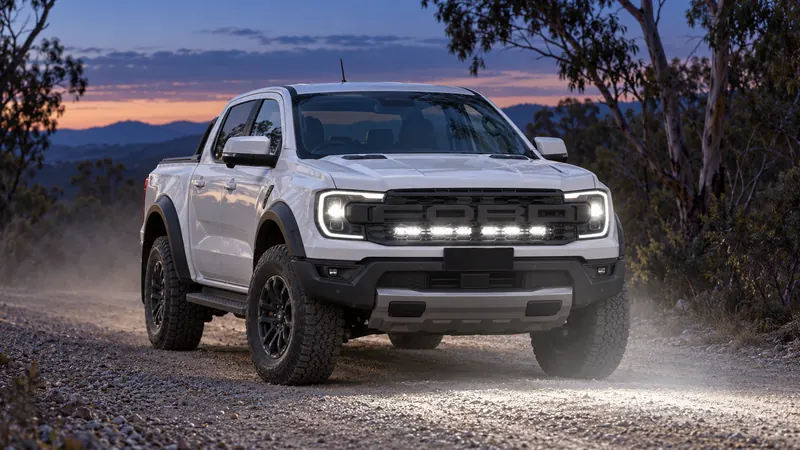

More behind-grille light bar kits
